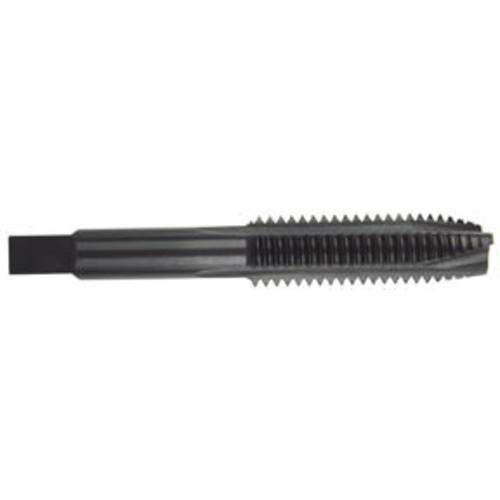

5/8-18 Dia. - GH3 - 3 FL - HSS - Black Oxide - Plug Spiral Point Tap Series/List #2047X
| Thread Standard | NF | Coating | Black Oxide |
| Thread Size | 5/8″ - 18 | Flute Count (NOF) | 3 |
| Thread Diameter Size (TDZ) | 5/8″ | Thread Cutting Part Length (THL) | 1-13/16″ |
| Threads per Inch (TPI) | 18 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 | End Shape | Spiral Point |
| Usable Length (LU) | 1-13/16″ | Style | Plug |
| Overall Length (OAL) | 3-13/16″ | Measurement Type | Inch |
| Chamfer | Plug | Series/List # | 2047X |
Product Features
| Remarks | • |
Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
0.2
